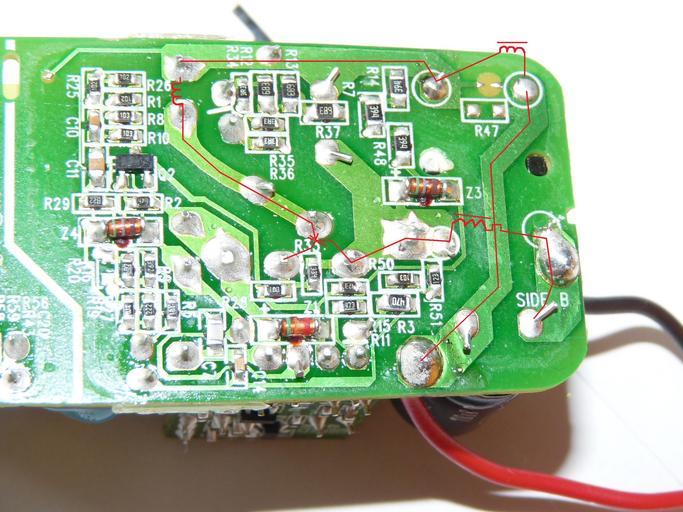

MAKE A MEME View Large Image AD59230 electrical circuit.jpg en AD59230 power circuit Blocking oscillator have some constructive defect transistor connected secuence to - negative pole it just switchs on and switchs off transformer's primary coil Electrical circuit has ...
View Original:AD59230 electrical circuit.jpg (2560x1920)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: AD59230 electrical circuit.jpg en AD59230 power circuit Blocking oscillator have some constructive defect transistor connected secuence to - negative pole it just switchs on and switchs off transformer's primary coil Electrical circuit has 4 inductor and absolutely no limitation diodes So after using 9-15 months transistor will burn and keep primary coil open As transformer is designed for high frequency it's primary coil has very small resistance Due to Ohm's law after transistor burning circuit will be shorted and burn fuses own Dmitry G 2010-04-01 AD59230
