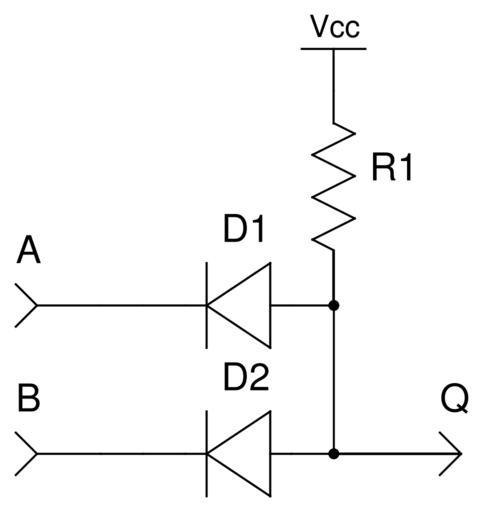

MAKE A MEME View Large Image ANDGate-2-Diode.svg en Schematic 2-input AND logic implemented with diodes and a resistor If A B or both are grounded low then Q is grounded low If A and B are both either Vcc or not connected then Q is Vcc high 2013-12-26 16 42 29 own ...
