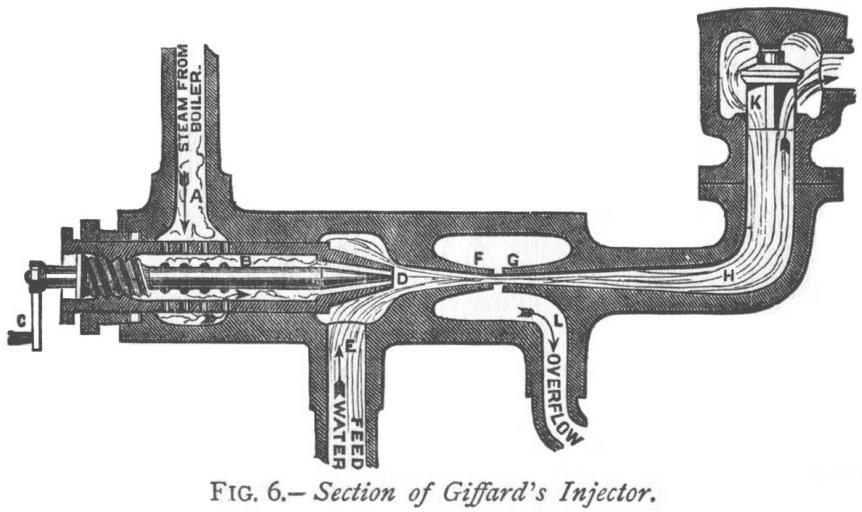

| Keywords: Injector Giffard-02.jpg A - langswitch Dampfrohr vom Kessel Steam pipe from boiler <br> B - langswitch Dampfnadelventil Steam needle valve <br> C - langswitch Dampfnadelventilkurbel Steam needle valve handle <br> D - langswitch Dampf und Wasser vereinigen sich hier Steam and water combine here <br> E - langswitch Speisewasserrohr Water feed pipe <br> F - langswitch Vereinigungsbereich Combining cone <br> G - langswitch Zuflussrohr und - konus Delivery nozzle cone <br> H - langswitch Zuflusskammer und -rohr Delivery chamber pipe <br> K - langswitch Prüfventil Check valve <br> L - langswitch à berlauf Overflow Langswitch Dampfstrahlpumpe erfunden von Henri Giffard Steam water injector invented by Henri Giffard Inyector de agua actuado por vapor inventado por Henri Giffard From the book Discoveries and Inventions of the 19th Century by Robert Routledge published in the early 1890s Early otherdate s 1890 Robert Routledge Public Domain PD-old Feedwater injectors Henri Giffard | ||||
