MAKE A MEME View Large Image Lancashire boiler, section (Bentley, Sketches of Engine and Machine Details).jpg The Lancashire boiler usually varies from 5'6 diameter up to 8'6 diameter and from 15 feet to 30 feet in length The Cornish boiler is similar but with one ...
View Original:Lancashire_boiler,_section_(Bentley,_Sketches_of_Engine_and_Machine_Details).jpg (1374x459)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This

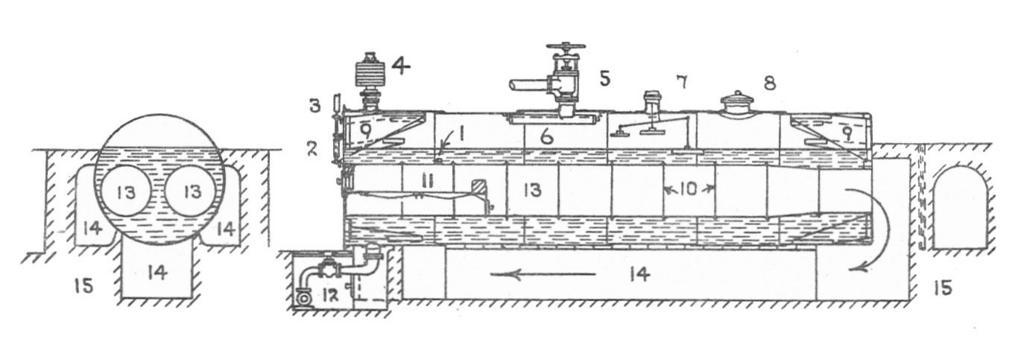

Keywords: Lancashire boiler, section (Bentley, Sketches of Engine and Machine Details).jpg The Lancashire boiler usually varies from 5'6 diameter up to 8'6 diameter and from 15 feet to 30 feet in length The Cornish boiler is similar but with one central furnace instead of two Cornish boilers range from 4' to 7' diameter and from 10 feet to 30 feet in length - 1 Fusible plug - 2 Water level gauge - 3 Steam pressure gauge - 4 Dead weight safety valve - 5 Main stop valve - 6 Steam collecting pipe - 7 High and Low Water Safety Valve - 8 Manhole - 9 Gusset stay - 10 Adamson's Rings - 11 Firebars - 12 Blow-off Cock - 13 Furnaces - 14 Flues - 15 Brickwork 107 Lancashire boilers
