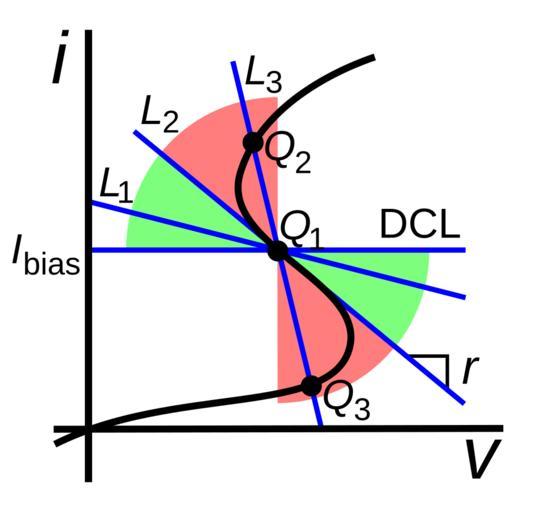

| Keywords: Negative resistance stability regions CCNR.svg characteristic curve of a current-controlled CCNR or S type negative differential resistance device showing stable unstable and bistable load line regions A DC bias current I<sub>bias</sub> sets the operating point Q<sub>1</sub> in the middle of the negative resistance region where the device has differential resistance Δv/Δi -r as shown by the DC load line DCL The AC load line set by the AC impedance Z facing the device passes through the Q point at a different angle depending on Z Increasing Z causes the load line to rotate counterclockwise if Z > r <font color green > green region </font> the load line intersects the curve once at Q<sub>1</sub> so the circuit is stable if Z r line L<sub>2</sub> the net resistance of the circuit R+r 0 so the circuit is unstable and will oscillate If Z < r <font color red > red region </font> the load line intersects the curve three times at Q<sub>1</sub> Q<sub>2</sub> and Q<sub>3</sub> The middle point Q<sub>1</sub> is unstable but the two outer operating points are stable so the circuit is bistable This biasing can be used to make flip-flops Since the device is stable for load resistances above r current controlled negative resistances are called open-circuit stable Devices with this type of negative resistance include IMPATT diodes unijunction transistors SCRs and gas discharge tubes like fluorescent lights and neon lights 2012-12-26 11 47 21 own Chetvorno File Negative resistance stability regions VCNR svg cc-zero Uploaded with UploadWizard Negative resistance Device current-voltage characteristics | ||||
