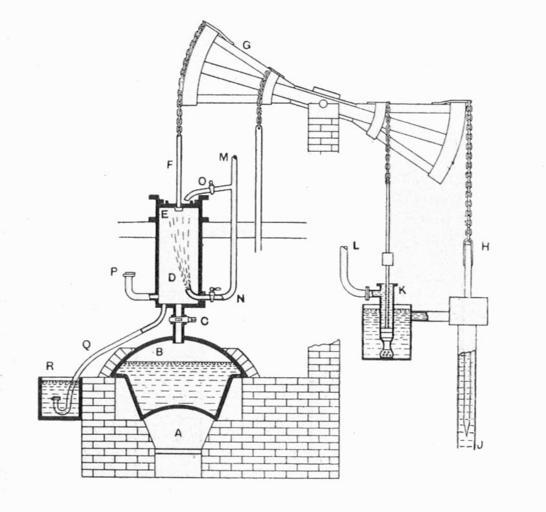

MAKE A MEME View Large Image Newcomen atmospheric engine (Heat Engines, 1913).jpg - A Boiler furnace - B Steam boiler - C Steam valve - D Engine cylinder - E Piston - F Piston-rod - G Beam - H Heavy pump-rod - J Mine pump - K Pump for condensing water - L Pipe leading ...
View Original:Newcomen_atmospheric_engine_(Heat_Engines,_1913).jpg (843x790)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: Newcomen atmospheric engine (Heat Engines, 1913).jpg - A Boiler furnace - B Steam boiler - C Steam valve - D Engine cylinder - E Piston - F Piston-rod - G Beam - H Heavy pump-rod - J Mine pump - K Pump for condensing water - L Pipe leading to condensing water tank - M Condensing water pipe - N Injection cock to cylinder - O Water-tap to top of piston - P Relief or snifting valve - Q Eduction pipe with non-return valve at end - R Feed-water tank Newcomen engines Haystack boilers Beam engine beams
