| View Original: | Quantization nodither noshaping spectrum.png (1060x840) | |||
| Download: | Original | Medium | Small | Thumb |
| Courtesy of: | commons.wikimedia.org | More Like This | ||

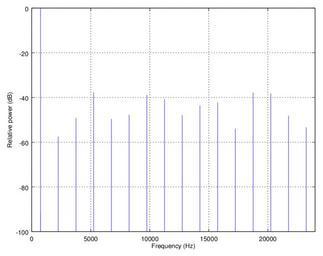

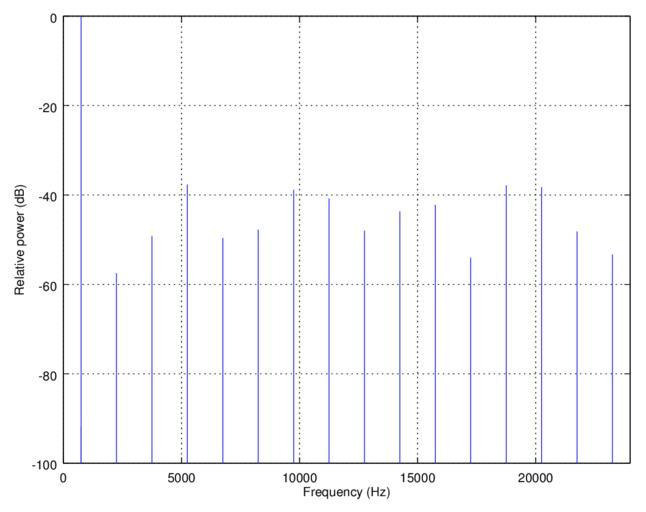

| Keywords: Quantization nodither noshaping spectrum.png en Spectrum of a 750 Hz pure tone sampled at 48 kHz and quantized to 4 bits using neither dither nor noise shaping <pre> quantization_nodither_noshaping m Quantization demo using neither dither nor noise shaping Authors Fatbag License Public domain no warranties rand 'state' 0xdeadbeef ; f_s 48000; sampling rate samples/sec f0 750; frequency of sine wave Hz t_s 1/f_s; sampling period sec/sample w0 2 pi f0; angular frequency of sine wave Hz t 0 4095 t_s; x round 15 sin w0 t ; figure 1; plot t 1 ceil 2 f_s/f0 x 1 ceil 2 f_s/f0 ; axis 0 ceil 2 f_s/f0 t_s -20 20 ; grid on; xlabel 't' ; ylabel 'x t ' ; figure 2; X fft x 1 4096 ; X X 1 2048 ; m 20 log10 arrayfun norm X ; m - max m ; m ~isfinite m -1000; f 0 2047 /2048 f_s/2; plot f m ; axis 0 f_s/2 -100 0 ; grid on; xlabel 'Frequency Hz ' ; ylabel 'Relative power dB ' ; print 'quantization_nodither_noshaping_spectrum_uncropped png';</pre> 2015-11-13 own Andrew D'Addesio other versions cc-zero Digital audio Quantization Uploaded with UploadWizard | ||||
