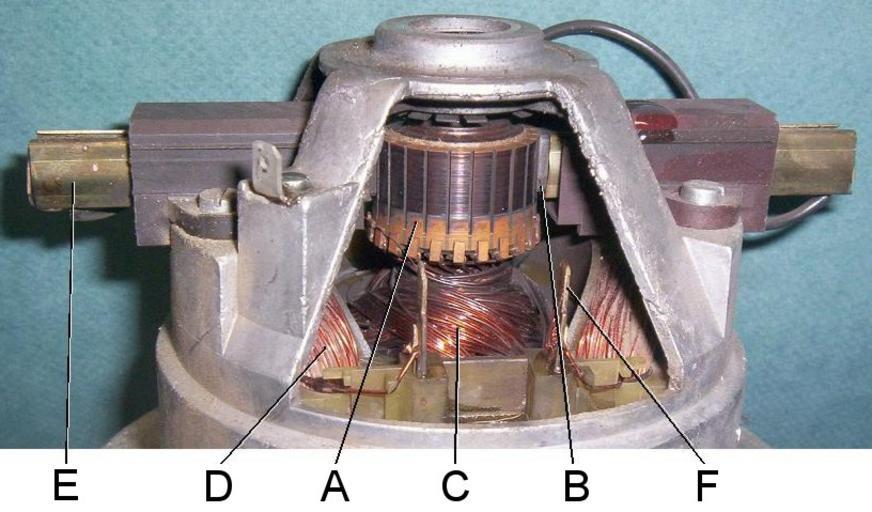

MAKE A MEME View Large Image Universal motor commutator.jpg electric motor from a vacuum cleaner showing the commutator This is a universal motor that runs on alternating current The commutator is a rotary switch that supplies power to the rotor windings reversing the ...
View Original:Universal motor commutator.jpg (816x479)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: Universal motor commutator.jpg electric motor from a vacuum cleaner showing the commutator This is a universal motor that runs on alternating current The commutator is a rotary switch that supplies power to the rotor windings reversing the direction of current with each half turn so the magnetic field of the winding exerts a steady torque to turn the rotor in one direction Labeled parts A commutator B brush C rotor armature winding D stator field winding E brush guide <br/> Alteration to original image changed labels of parts from German to letters 2015-03-11 Original work MotorCommutator jpg Original work Ulfbastel Derived work Chetvorno Original work was public domain other versions MotorCommutator jpg Emotaufbaude jpg EmotaufbaudeSK jpg Uploaded with UploadWizard Electric motors Universal Electrical commutators
