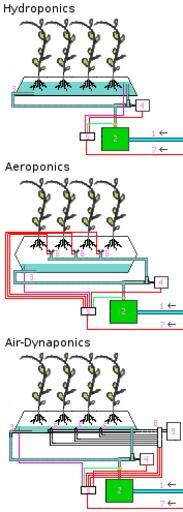

| Keywords: X ponics systems.png en Schematic showing all 3 types of X-ponics systems hydroponics aeroponics aer-dynaponics References http //alfin2100 blogspot com/2010/04/no-cropland-no-problem-farming-on-air html http //www biocontrols com/aero18b htm A new frontier for hydroponics Growing Edge 16 Sept/Oct p72-75 by Chow K K 2004 Made based on direct advice from Mr Kheong Keat Gregory Chow System components 1 Water inlet clear water 2 Nutrient solution tank 3 Plant box drain 4 Engine with pump attached 5 Electrical board switches supply of power on/off to sprinklers at a timed interval; switches valve on/off from nutrient solution tank; this when the sensor in the plant box indicates that the solution level is getting too low 6 Spraying nozzles 7 Electricity inlet 8 Air compressor 9 Manifold holds valves of air-dynaponics system which allow to put spraying nozzles on/off at a timed interval Note A chiller has not been placed at the aeroponics system at drain pipe; before the pump since this is not a vital component may be dismissed in some situations; ie in temperate climates or when using alternative cooling systems In the tropics without some type of chilling equipment the roots would however get scorched root zone temperature gets too high resulting in browning of roots and rotting own KVDP 2010-01-30 Hydroponics Aeroponics Aero-dynaponics Irrigation | ||||
